Underdamped Langevin Diffusion simulation¤

The Underdamped Langevin diffusion (ULD) is an SDE of the form:

\[\begin{align*} \mathrm{d} x(t) &= v(t) \, \mathrm{d}t \\ \mathrm{d} v(t) &= - \gamma \, v(t) \, \mathrm{d}t - u \, \nabla \! f( x(t) ) \, \mathrm{d}t + \sqrt{2 \gamma u} \, \mathrm{d} w(t), \end{align*}\]

where \(x(t), v(t) \in \mathbb{R}^d\) represent the position and velocity, \(w\) is a Brownian motion in \(\mathbb{R}^d\), \(f: \mathbb{R}^d \rightarrow \mathbb{R}\) is a potential function, and \(\gamma , u \in \mathbb{R}^{d \times d}\) are diagonal matrices governing the friction and the damping of the system.

ULD for Monte Carlo and Bayesian inference¤

ULD is commonly used in Monte Carlo applications since it allows us to sample from its stationary distribution \(p = \frac{\exp(-f)}{C}\) even when its normalising constant \(C = \int p(x) dx\) is unknown. This is because only knowledge of \(\nabla f\) is required, which doesn't depend on \(C\). For an example of such an application see section 5.2 of the paper on Single-seed generation of Brownian paths.

ULD solvers in Diffrax¤

In addition to generic SDE solvers (which can solve any SDE including ULD), Diffrax has some solvers designed specifically for ULD. These are diffrax.ALIGN which has a 2nd order of strong convergence, and diffrax.QUICSORT and diffrax.ShOULD which are 3rd order solvers. Note that unlike ODE solvers which can have orders of 5 or even higher, very few types of SDEs permit solvers with a strong order greater than \(\frac{1}{2}\).

These ULD-specific solvers only accept terms of the form MultiTerm(UnderdampedLangevinDriftTerm(gamma, u, grad_f), UnderdampedLangevinDiffusionTerm(gamma, u, bm)).

A 2D harmonic oscillator¤

In this example we will simulate a simple harmonic oscillator in 2 dimensions. This system is given by the potential \(f(x) = x^2\).

from warnings import simplefilter


simplefilter(action="ignore", category=FutureWarning)
import diffrax
import jax.numpy as jnp
import jax.random as jr
import matplotlib.pyplot as plt


t0, t1 = 0.0, 20.0
dt0 = 0.05
saveat = diffrax.SaveAt(steps=True)

# Parameters
gamma = jnp.array([2, 0.5], dtype=jnp.float32)
u = jnp.array([0.5, 2], dtype=jnp.float32)
x0 = jnp.zeros((2,), dtype=jnp.float32)
v0 = jnp.zeros((2,), dtype=jnp.float32)
y0 = (x0, v0)

# Brownian motion
bm = diffrax.VirtualBrownianTree(
    t0, t1, tol=0.01, shape=(2,), key=jr.key(0), levy_area=diffrax.SpaceTimeTimeLevyArea
)

drift_term = diffrax.UnderdampedLangevinDriftTerm(gamma, u, lambda x: 2 * x)
diffusion_term = diffrax.UnderdampedLangevinDiffusionTerm(gamma, u, bm)
terms = diffrax.MultiTerm(drift_term, diffusion_term)

solver = diffrax.QUICSORT(100.0)
sol = diffrax.diffeqsolve(
    terms, solver, t0, t1, dt0=dt0, y0=y0, args=None, saveat=saveat
)
xs, vs = sol.ys

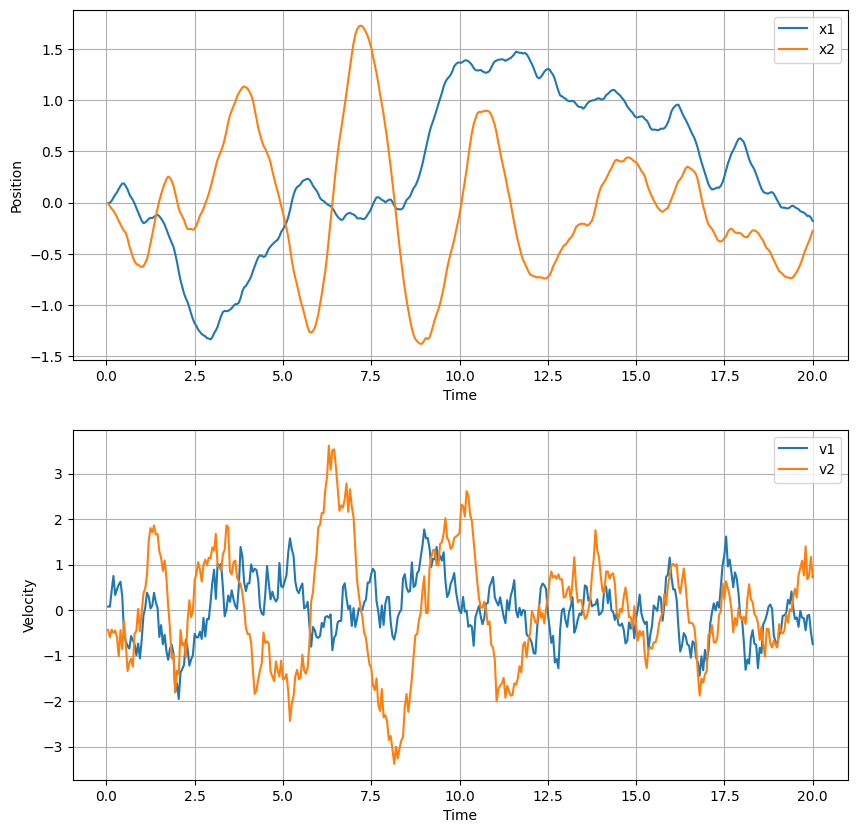

# Plot the trajectory against time and velocity against time in a separate plot
fig, axs = plt.subplots(2, 1, figsize=(10, 10))
axs[0].plot(sol.ts, xs[:, 0], label="x1")
axs[0].plot(sol.ts, xs[:, 1], label="x2")
axs[0].set_xlabel("Time")
axs[0].set_ylabel("Position")
axs[0].legend()
axs[0].grid()

axs[1].plot(sol.ts, vs[:, 0], label="v1")
axs[1].plot(sol.ts, vs[:, 1], label="v2")
axs[1].set_xlabel("Time")
axs[1].set_ylabel("Velocity")
axs[1].legend()
axs[1].grid()

plt.show()
