%env JAX_PLATFORM_NAME=cuda
from warnings import simplefilter
simplefilter("ignore", category=FutureWarning)
from functools import partial
import diffrax
import equinox as eqx
import jax
import jax.numpy as jnp
import jax.random as jr
import matplotlib.pyplot as plt
import optax
from jaxtyping import Array
jax.config.update("jax_enable_x64", True)
jnp.set_printoptions(precision=4, suppress=True)
env: JAX_PLATFORM_NAME=cuda
Advanced SDE example¤
We will be simulating a Stratonovich SDE of the form:
where \(t \in [0, T]\), \(y(t) \in \mathbb{R}^e\), and \(w\) is a standard Brownian motion on \(\mathbb{R}^d\). We refer to \(f: \mathbb{R}^e \times [0, T] \to \mathbb{R}^e\) as the drift vector field and \(g: \mathbb{R}^e \times [0, T] \to \mathbb{R}^{e \times d}\) is the diffusion matrix field. The Stratonovich integral is denoted by \(\circ\).
Our SDE will have the following drift and diffusion terms:
where \(\alpha, \gamma \in \mathbb{R}^3\) and \(\beta \in \mathbb{R}_{\geq 0}\) are some parameters.
Let's write the SDE in the form that Diffrax expects:
# Drift VF (e = 3)
def f(t, y, args):
alpha, beta, gamma = args
beta = jnp.abs(beta)
assert alpha.shape == (3,)
return jnp.array(alpha - beta * y, dtype=y.dtype)
# Diffusion matrix field (e = 3, d = 2)
def g(t, y, args):
alpha, beta, gamma = args
assert gamma.shape == y.shape == (3,)
gamma = jnp.reshape(gamma, (3, 1))
out = gamma * jnp.array(
[[jnp.sqrt(jnp.sum(y**2)), 0.0], [0.0, 3 * y[0]], [0.0, 20 * t]], dtype=y.dtype
)
return out
# Initial condition
y0 = jnp.array([1.0, 1.0, 1.0])
# Args
alpha = 0.5 * jnp.ones((3,))
beta = 1.0
gamma = jnp.ones((3,))
args = (alpha, beta, gamma)
# Time domain
t0 = 0.0
t1 = 2.0
dt0 = 2**-9
Brownian motion and its Levy area¤
Different solvers require different information about the Brownian motion. For example, the SPaRK solver requires access to the space-time Levy area of the Brownian motion. The required Levy area for each solver is documented in the table at the end of this notebook, or can be checked via solver.minimal_levy_area.
We will use the VirtualBrownianTree class to generate the Brownian motion and its Levy area.
# check minimal levy area
solver = diffrax.SPaRK()
print(f"Minimal levy area for SPaRK: {solver.minimal_levy_area}.")
# Brownian motion
key = jr.key(0)
bm_tol = 2**-13
bm_shape = (2,)
bm = diffrax.VirtualBrownianTree(
t0, t1, bm_tol, bm_shape, key, levy_area=diffrax.SpaceTimeLevyArea
)
# Defining the terms of the SDE
ode_term = diffrax.ODETerm(f)
diffusion_term = diffrax.ControlTerm(g, bm) # Note that the BM is baked into the term
terms = diffrax.MultiTerm(ode_term, diffusion_term)
Minimal levy area for SPaRK: <class 'diffrax.AbstractSpaceTimeLevyArea'>.
Using diffrax.diffeqsolve to solve the SDE¤
We will first use constant steps of size \(h = 2^{-9}\) to solve the SDE. It is very important to have \(h > \mathtt{bm\_tol}\), where \(\mathtt{bm\_tol}\) is the tolerance of the Brownian motion. This is important because the output distribution of the VirtualBrownianTree is precise as long as the times that we sample it at are at least \(\mathtt{bm\_tol}\) apart. For more details see the Single-seed Brownian Motion paper.
We will use the SPaRK solver to solve the SDE. SPaRK is a stochastic Runge-Kutta method that requires access to space-time Levy area.
sol = diffrax.diffeqsolve(
terms, diffrax.SPaRK(), t0, t1, dt0, y0, args, saveat=diffrax.SaveAt(steps=True)
)

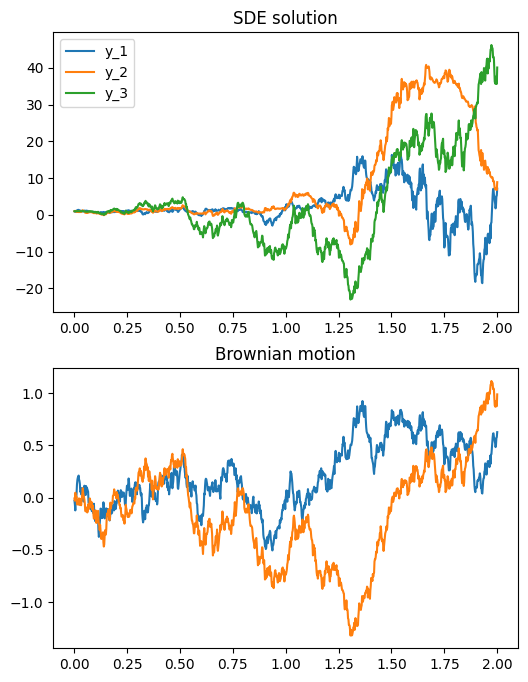

# Plotting the solution on ax1 and the BM on ax2
fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(6, 8))
ax1.plot(sol.ts, sol.ys[:, 0], label="y_1")
ax1.plot(sol.ts, sol.ys[:, 1], label="y_2")
ax1.plot(sol.ts, sol.ys[:, 2], label="y_3")
ax1.set_title("SDE solution")
ax1.legend()
bm_vals = jax.vmap(lambda t: bm.evaluate(t0, t))(jnp.clip(sol.ts, t0, t1))
ax2.plot(sol.ts, bm_vals[:, 0], label="BM_1")
ax2.plot(sol.ts, bm_vals[:, 1], label="BM_2")
ax2.set_title("Brownian motion")
plt.show()
Using adaptive time-stepping via the PID-controller¤
In order to use adaptive time stepping, the solver must produce an estimate of its error on each step. This is then used by the PID controller to adjust the step size.
To perform this error estimation the SPaRK solver uses an embedded method. For solvers like GeneralShARK, which do not have an embedded method, we'd instead need to use HalfSolver(GeneralShARK()) as the solver in order to estimate the error.
controller = diffrax.PIDController(
rtol=0,
atol=0.005,
pcoeff=0.2,
icoeff=0.5,
dcoeff=0,
dtmin=2**-12,
dtmax=0.25,
)
solver = diffrax.SPaRK()
# solver = diffrax.HalfSolver(diffrax.GeneralShARK())
sol_pid_spark = diffrax.diffeqsolve(
terms,
solver,
t0,
t1,
dt0,
y0,
args,
saveat=diffrax.SaveAt(steps=True),
stepsize_controller=controller,
max_steps=2**16,
)
accepted_steps = sol_pid_spark.stats["num_accepted_steps"]
rejected_steps = sol_pid_spark.stats["num_rejected_steps"]
print(
f"Accepted steps: {accepted_steps}, Rejected steps: {rejected_steps},"
f" total steps: {accepted_steps + rejected_steps}"
)

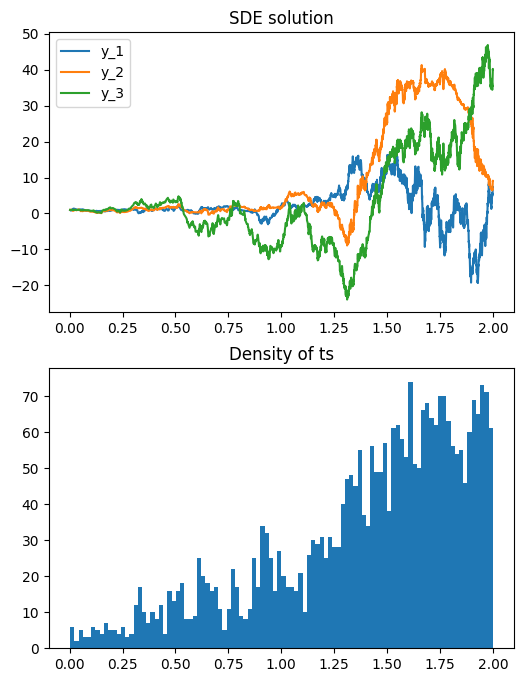

# Plot the solution on ax1 and the density of ts on ax2
fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(6, 8))
ax1.plot(sol_pid_spark.ts, sol_pid_spark.ys[:, 0], label="y_1")
ax1.plot(sol_pid_spark.ts, sol_pid_spark.ys[:, 1], label="y_2")
ax1.plot(sol_pid_spark.ts, sol_pid_spark.ys[:, 2], label="y_3")
ax1.set_title("SDE solution")
ax1.legend()
# Plot the density of ts
# sol_pid.ts is padded with inf values at the end, so we remove them
padding_idx = jnp.argmax(jnp.isinf(sol_pid_spark.ts))
ts = sol_pid_spark.ts[:padding_idx]
ax2.hist(ts, bins=100)
ax2.set_title("Density of ts")
plt.show()
Accepted steps: 2968, Rejected steps: 1637, total steps: 4605
Solving an SDE for a batch of Brownian motions¤
When doing Monte Carlo simulations, we often need to solve the same SDE for multiple Brownian motions. We can do this via jax.vmap.
def get_terms(bm):
return diffrax.MultiTerm(ode_term, diffrax.ControlTerm(g, bm))
# Fix which times we step to (this is equivalent to a constant step size)
# We do this because the combination of using dt0 and SaveAt(steps=True) pads the
# output with inf values up to max_steps.
# Instead we specify exactly which times we want to save at, so Diffrax allocates
# the correct amount of memory at the outset.
num_steps = 2**8
step_times = jnp.linspace(t0, t1, num_steps + 1, endpoint=True)
constant_controller = diffrax.StepTo(ts=step_times)
saveat = diffrax.SaveAt(ts=step_times)
# We will vmap over keys
@eqx.filter_jit
@partial(jax.vmap, in_axes=(0, None, None))
def batch_sde_solve(key, saveat, args):
bm = diffrax.VirtualBrownianTree(
t0, t1, bm_tol, bm_shape, key, levy_area=diffrax.SpaceTimeLevyArea
)
terms = get_terms(bm)
return diffrax.diffeqsolve(
terms,
diffrax.SPaRK(),
t0,
t1,
None,
y0,
args,
saveat=saveat,
stepsize_controller=constant_controller,
)
# Split the keys and compute the batched solutions
num_samples = 100
keys = jr.split(jr.PRNGKey(0), num_samples)
batch_sols = batch_sde_solve(keys, saveat, args)
print(
f"Shape of batch_sols: "
f"{batch_sols.ys.shape} == {num_samples} x {num_steps + 1} x (dim of y)"
)
Shape of batch_sols: (100, 257, 3) == 100 x 257 x (dim of y)
Optimizing wrt. SDE parameters¤
We will optimize the SDE parameters with the aim of achieving a mean of 0 and variance 4 at time t1.
saveat_t1 = diffrax.SaveAt(t1=True)
batch_ys = batch_sde_solve(keys, saveat_t1, args).ys
print(batch_ys.shape)
ys_t1 = batch_ys[:, 0]
mean_t1 = jnp.mean(ys_t1, axis=0)
var_t1 = jnp.mean(ys_t1**2, axis=0) - mean_t1**2
print(f"Stats at t=t1: mean={mean_t1}, var={var_t1}")
# We will optimize for achieving a mean of 0
def loss(args: tuple[Array, Array, Array]):
_batch_sols = batch_sde_solve(keys, saveat_t1, args)
batch_ys = _batch_sols.ys
assert batch_ys.shape == (num_samples, 1, 3)
mean = jnp.mean(batch_ys, axis=(0, 1))
std = jnp.sqrt(jnp.mean(batch_ys**2, axis=(0, 1)) - mean**2)
target_mean = jnp.array([0.0, 1.0, 0.0])
target_stds = 2 * jnp.ones((3,))
loss = jnp.sqrt(
jnp.sum((mean - target_mean) ** 2) + jnp.sum((std - target_stds) ** 2)
)
return loss
# Define the parameters to optimize
alpha_opt = 0.5 * jnp.ones((3,))
beta_opt = jnp.array(1.0)
gamma_opt = jnp.ones((3,))
args_opt = (alpha_opt, beta_opt, gamma_opt)
# Define the optimizer
num_steps = 191
schedule = optax.cosine_decay_schedule(3e-1, num_steps, 1e-2)
opt = optax.chain(
optax.scale_by_adam(b1=0.9, b2=0.99, eps=1e-8),
optax.scale_by_schedule(schedule),
optax.scale(-1),
)
# opt = optax.adam(2e-1)
opt_state = opt.init(args_opt)
@jax.jit
def step(i, opt_state, args):
loss_val, grad = jax.value_and_grad(loss)(args)
updates, opt_state = opt.update(grad, opt_state)
# One way to apply updates
# args = optax.apply_updates(args, updates)
# Another way to apply updates
args = jax.tree_util.tree_map(lambda x, u: x + u, args, updates)
return opt_state, args, loss_val
for i in range(num_steps):
opt_state, args_opt, loss_val = step(i, opt_state, args_opt)
alpha_opt, beta_opt, gamma_opt = args_opt
if i % 10 == 0:
print(f"Step {i}, loss: {loss_val}")
print(f"Optimal parameters:\nalpha={alpha_opt}, beta={beta_opt}, gamma={gamma_opt}")
(100, 1, 3)
Stats at t=t1: mean=[-1.0154 1.5479 2.0878], var=[329.4802 711.1078 424.3449]
Step 0, loss: 34.94212183883967
Step 10, loss: 4.874442625767792
Step 20, loss: 2.521634210842532
Step 30, loss: 1.4702096092338783
Step 40, loss: 0.7936488640119762
Step 50, loss: 0.20701309373712398
Step 60, loss: 0.43545896965573144
Step 70, loss: 0.48191871779789575
Step 80, loss: 0.14351136791805125
Step 90, loss: 0.42323194856385005
Step 100, loss: 0.7814543571174357
Step 110, loss: 0.5590729910392899
Step 120, loss: 0.09288914937239617
Step 130, loss: 0.1462945784163213
Step 140, loss: 0.29703455403048784
Step 150, loss: 0.06270444996116936
Step 160, loss: 0.01298645327270607
Step 170, loss: 0.08775177455266986
Step 180, loss: 0.016462953232162895
Step 190, loss: 0.018917675036979466
Optimal parameters:
alpha=[-0.1822 3.5395 -0.0834], beta=3.645413009852767, gamma=[-1.6817 -0.8223 0.149 ]
batch_ys_opt = batch_sde_solve(keys, saveat_t1, args_opt).ys
ys_t1 = batch_ys_opt[:, -1]
mean_t1 = jnp.mean(ys_t1, axis=0)
var_t1 = jnp.mean(ys_t1**2, axis=0) - mean_t1**2
print(f"Stats at t=t1: mean={mean_t1}, var={var_t1}")
Stats at t=t1: mean=[0.0001 1.0005 0.0002], var=[4.0193 4.0269 4.0155]
With the magic of JAX and Diffrax we were able to differentiate through the SDE solver and optimize the parameters of the SDE to achieve the desired mean and variance at time t1.
