Latent ODE¤
This example trains a Latent ODE.
In this case, it's on a simple dataset of decaying oscillators. That is, 2-dimensional time series that look like:
xx ***
** *
x* **
*x
x *
* * xxxxx
* x * xx xx *******
x x **
x * x * x * xxxxxxxx ******
x * x * x * xxx *xx *
x * xx ** x ** xx
x * x * x * xx ** xx
* x * x ** x * xxx
x * * x * xx **
x * x * xx xx* ***
x *x * xxx xxx *****
x x* * xx
x xx ******
xxxxx
The model is trained to generate samples that look like this.
What's really nice about this example is that we will take the underlying data to be irregularly sampled. We will have different observation times for different batch elements.
Most differential equation libraries will struggle with this, as they usually mandate that the differential equation be solved over the same timespan for all batch elements. Working around this can involve programming complexity like outputting at lots and lots of times (the union of all the observations times in the batch), or mathematical complexities like reparameterising the differentiating equation.
However Diffrax is capable of handling this without such issues! You can vmap over
different integration times for different batch elements.
Reference:
@incollection{rubanova2019latent,
title={{L}atent {O}rdinary {D}ifferential {E}quations for {I}rregularly-{S}ampled
{T}ime {S}eries},
author={Rubanova, Yulia and Chen, Ricky T. Q. and Duvenaud, David K.},
booktitle={Advances in Neural Information Processing Systems},
publisher={Curran Associates, Inc.},
year={2019},
}
This example is available as a Jupyter notebook here.
import time
import diffrax
import equinox as eqx
import jax
import jax.nn as jnn
import jax.numpy as jnp
import jax.random as jr
import matplotlib
import matplotlib.pyplot as plt
import numpy as np
import optax
matplotlib.rcParams.update({"font.size": 30})
The vector field. Note its overall structure of scalar * tanh(mlp(y)) which is a good structure for Latent ODEs. (Here the tanh is part of self.mlp.)
class Func(eqx.Module):
scale: jnp.ndarray
mlp: eqx.nn.MLP
def __call__(self, t, y, args):
return self.scale * self.mlp(y)
Wrap up the differential equation solve into a model.
class LatentODE(eqx.Module):
func: Func
rnn_cell: eqx.nn.GRUCell
hidden_to_latent: eqx.nn.Linear
latent_to_hidden: eqx.nn.MLP
hidden_to_data: eqx.nn.Linear
hidden_size: int
latent_size: int
def __init__(
self, *, data_size, hidden_size, latent_size, width_size, depth, key, **kwargs
):
super().__init__(**kwargs)
mkey, gkey, hlkey, lhkey, hdkey = jr.split(key, 5)
scale = jnp.ones(())
mlp = eqx.nn.MLP(
in_size=hidden_size,
out_size=hidden_size,
width_size=width_size,
depth=depth,
activation=jnn.softplus,
final_activation=jnn.tanh,
key=mkey,
)
self.func = Func(scale, mlp)
self.rnn_cell = eqx.nn.GRUCell(data_size + 1, hidden_size, key=gkey)
self.hidden_to_latent = eqx.nn.Linear(hidden_size, 2 * latent_size, key=hlkey)
self.latent_to_hidden = eqx.nn.MLP(
latent_size, hidden_size, width_size=width_size, depth=depth, key=lhkey
)
self.hidden_to_data = eqx.nn.Linear(hidden_size, data_size, key=hdkey)
self.hidden_size = hidden_size
self.latent_size = latent_size
# Encoder of the VAE
def _latent(self, ts, ys, key):
data = jnp.concatenate([ts[:, None], ys], axis=1)
hidden = jnp.zeros((self.hidden_size,))
for data_i in reversed(data):
hidden = self.rnn_cell(data_i, hidden)
context = self.hidden_to_latent(hidden)
mean, logstd = context[: self.latent_size], context[self.latent_size :]
std = jnp.exp(logstd)
latent = mean + jr.normal(key, (self.latent_size,)) * std
return latent, mean, std
# Decoder of the VAE
def _sample(self, ts, latent):
dt0 = 0.4 # selected as a reasonable choice for this problem
y0 = self.latent_to_hidden(latent)
sol = diffrax.diffeqsolve(
diffrax.ODETerm(self.func),
diffrax.Tsit5(),
ts[0],
ts[-1],
dt0,
y0,
saveat=diffrax.SaveAt(ts=ts),
)
return jax.vmap(self.hidden_to_data)(sol.ys)
@staticmethod
def _loss(ys, pred_ys, mean, std):
# -log p_θ with Gaussian p_θ
reconstruction_loss = 0.5 * jnp.sum((ys - pred_ys) ** 2)
# KL(N(mean, std^2) || N(0, 1))
variational_loss = 0.5 * jnp.sum(mean**2 + std**2 - 2 * jnp.log(std) - 1)
return reconstruction_loss + variational_loss
# Run both encoder and decoder during training.
def train(self, ts, ys, *, key):
latent, mean, std = self._latent(ts, ys, key)
pred_ys = self._sample(ts, latent)
return self._loss(ys, pred_ys, mean, std)
# Run just the decoder during inference.
def sample(self, ts, *, key):
latent = jr.normal(key, (self.latent_size,))
return self._sample(ts, latent)
Toy dataset of decaying oscillators.
By way of illustration we set this up as a differential equation and solve this using Diffrax as well. (Despite this being an autonomous linear ODE, for which a closed-form solution is actually available.)
def get_data(dataset_size, *, key):
ykey, tkey1, tkey2 = jr.split(key, 3)
y0 = jr.normal(ykey, (dataset_size, 2))
t0 = 0
t1 = 2 + jr.uniform(tkey1, (dataset_size,))
ts = jr.uniform(tkey2, (dataset_size, 20)) * (t1[:, None] - t0) + t0
ts = jnp.sort(ts)
dt0 = 0.1
def func(t, y, args):
return jnp.array([[-0.1, 1.3], [-1, -0.1]]) @ y
def solve(ts, y0):
sol = diffrax.diffeqsolve(
diffrax.ODETerm(func),
diffrax.Tsit5(),
ts[0],
ts[-1],
dt0,
y0,
saveat=diffrax.SaveAt(ts=ts),
)
return sol.ys
ys = jax.vmap(solve)(ts, y0)
return ts, ys
def dataloader(arrays, batch_size, *, key):
dataset_size = arrays[0].shape[0]
assert all(array.shape[0] == dataset_size for array in arrays)
indices = jnp.arange(dataset_size)
while True:
perm = jr.permutation(key, indices)
(key,) = jr.split(key, 1)
start = 0
end = batch_size
while start < dataset_size:
batch_perm = perm[start:end]
yield tuple(array[batch_perm] for array in arrays)
start = end
end = start + batch_size
The main entry point. Try running main() to train a model.
def main(
dataset_size=10000,
batch_size=256,
lr=1e-2,
steps=250,
save_every=50,
hidden_size=16,
latent_size=16,
width_size=16,
depth=2,
seed=5678,
):
key = jr.PRNGKey(seed)
data_key, model_key, loader_key, train_key, sample_key = jr.split(key, 5)
ts, ys = get_data(dataset_size, key=data_key)
model = LatentODE(
data_size=ys.shape[-1],
hidden_size=hidden_size,
latent_size=latent_size,
width_size=width_size,
depth=depth,
key=model_key,
)
@eqx.filter_value_and_grad
def loss(model, ts_i, ys_i, key_i):
batch_size, _ = ts_i.shape
key_i = jr.split(key_i, batch_size)
loss = jax.vmap(model.train)(ts_i, ys_i, key=key_i)
return jnp.mean(loss)
@eqx.filter_jit
def make_step(model, opt_state, ts_i, ys_i, key_i):
value, grads = loss(model, ts_i, ys_i, key_i)
key_i = jr.split(key_i, 1)[0]
updates, opt_state = optim.update(grads, opt_state)
model = eqx.apply_updates(model, updates)
return value, model, opt_state, key_i
optim = optax.adam(lr)
opt_state = optim.init(eqx.filter(model, eqx.is_inexact_array))

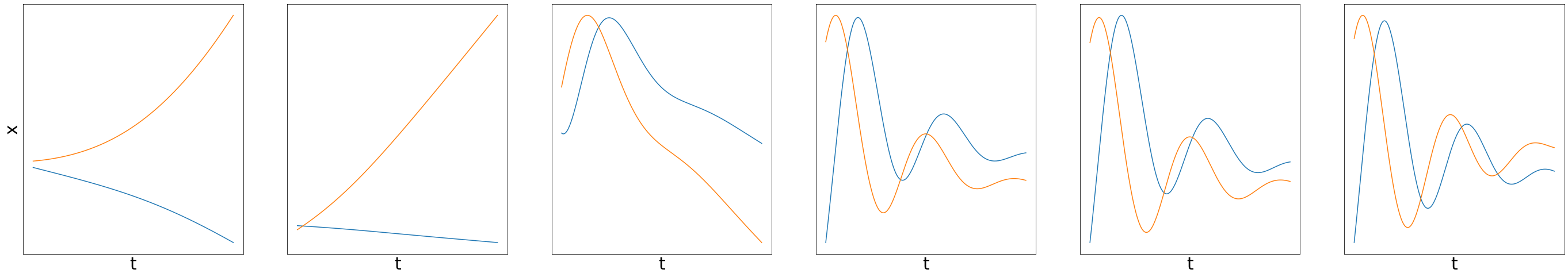

# Plot results
num_plots = 1 + (steps - 1) // save_every
if ((steps - 1) % save_every) != 0:
num_plots += 1
fig, axs = plt.subplots(1, num_plots, figsize=(num_plots * 8, 8))
axs[0].set_ylabel("x")
axs = iter(axs)
for step, (ts_i, ys_i) in zip(
range(steps), dataloader((ts, ys), batch_size, key=loader_key)
):
start = time.time()
value, model, opt_state, train_key = make_step(
model, opt_state, ts_i, ys_i, train_key
)
end = time.time()
print(f"Step: {step}, Loss: {value}, Computation time: {end - start}")
if (step % save_every) == 0 or step == steps - 1:
ax = next(axs)
# Sample over a longer time interval than we trained on. The model will be
# sufficiently good that it will correctly extrapolate!
sample_t = jnp.linspace(0, 12, 300)
sample_y = model.sample(sample_t, key=sample_key)
sample_t = np.asarray(sample_t)
sample_y = np.asarray(sample_y)
ax.plot(sample_t, sample_y[:, 0])
ax.plot(sample_t, sample_y[:, 1])
ax.set_xticks([])
ax.set_yticks([])
ax.set_xlabel("t")
plt.savefig("latent_ode.png")
plt.show()
main()
